Key Features
- LTE-A Cat6 cellular IoT router
- Dual SIM Gigabit Ethernet and dual band wifi
- VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system
- Support LTE Cat 6 up to 300 Mbps
- Gigabit Ethernet

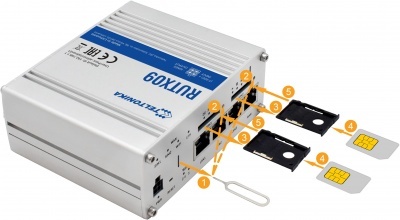

- Dual-SIM with auto Failover, Backup WAN and other SW features
- Teltonika Remote Management System compatible
- Multiple VPN services
Usage
- This LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required
- Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.
Specifications / Frequency
Electrical
- Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
- Input: 1 x Digital Input (Non-isolated, Logic low 0…+5V, Logic high +8…+40V)
- Output: 1 x Digital Output (open collector type, 30V@0.3A)
- Connector: 4 pin industrial DC power socket
- Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
- Power: 4 pin industrial DC power socket
- Power consumption: 11W Max.
- Antennas: 2 x SMA for LTE, 1 x SMA for GNNS
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
- RMS: Teltonika Remote Management System (RMS)
- Operating system: RutOS (OpenWrt based Linux OS)
Mechanical
- Dimensions: 115 mm x 95 mm x 44 mm (H x W x D)
- Weight: 456g
- Casing material: Full aluminium housing
- Mounting options: DIN rail (can be mounted on two sides), flat surface placement
- Operating temperature: -40 C to 75 C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
