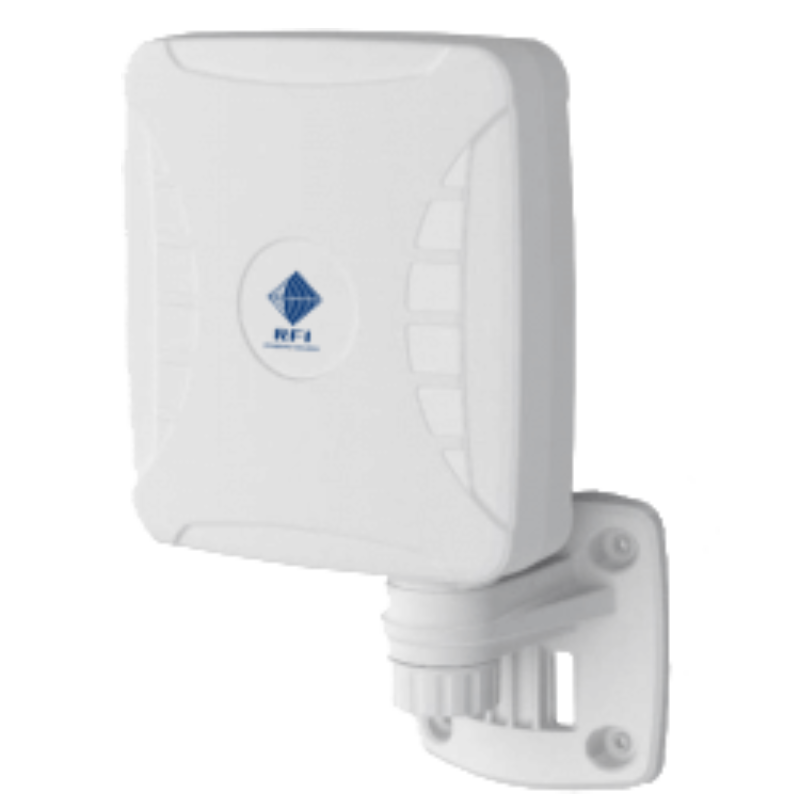

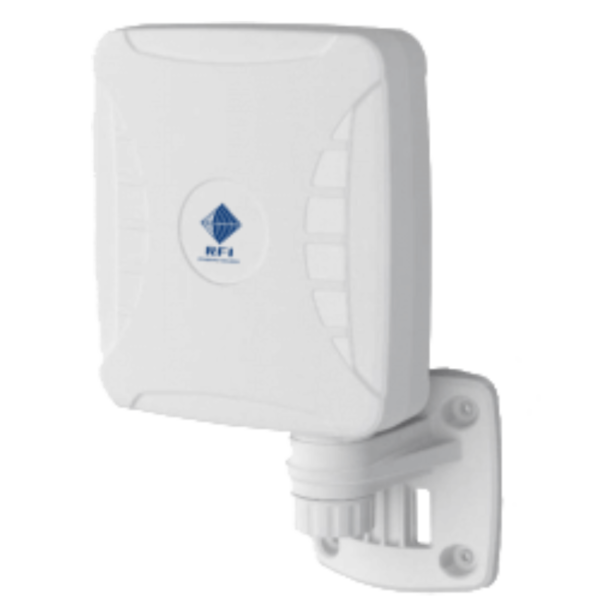

Key Features
- Covers the new 700MHz (Band 28) and the 3400 to 3800MHz 5G bands
- Cross polarised 2×2 MIMO
- Wall, pole or window mounting
- Light weight & rugged
- Weatherproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation
Usage
- This omnidirectional LTE MIMO antenna provides an innovative and future proof solution for 5G and 5G networks and is ideal for those seeking increased signal and hence faster, more reliable data speeds on today’s modern 4G & 5G networks.
- This Antenna supports LTE-A allowing for carrier aggregation across the 4G & 5G bands within Urban areas.
- It incorporates two separately fed ultra-wideband elements in a single housing which provides basic MIMO diversity for the networks of today and tomorrow.
- The weatherproof housing is designed for window (suction), pole and wall mounting and has dual 5m low loss cables terminated with SMA male connectors
- If you require longer cables you can select the N-Female connector option to allow connecting antenna extension cables.
Specifications / Frequency
| Network Compatibility | Yes/No | Gain |
| Telstra 4GX (700 MHz) | 3 dBi | |
| Optus 4G+ (700 MHz) | 3 dBi | |
| LTE Bands 12-14, 17, 28, 29, 44 (700 MHz) | 3 dBi | |
| Telstra Next-G™ (850 MHz) | 3 dBi | |
| Vodafone 4G+ (850 MHz) | 3 dBi | |
| Optus Regional 3G (900 MHz) | 3 dBi | |
| Vodafone Regional 3G (900 MHz) | 3 dBi | |
| Telstra/Optus/Voda 4G (1800 MHz) | 3 dBi | |
| LTE Bands 2, 25, 35-37, 39 (1900 MHz) | 3 dBi | |
| LTE Bands 1, 33, 34 (2100 MHz) | 3 dBi | |
| Optus 4G TDD (2300 MHz) | 3 dBi | |
| LTE-TDD Bands 40 (2300 MHz) | 3 dBi | |
| 802.11 b/g/n/ac WiFi (2400 MHz) | 3 dBi | |
| LTE Band 41 (2500 MHz) | 3 dBi | |
| LTE Bands 7, 38 (2600 MHz) | 3 dBi | |
| Telstra 4GX Band 7 (2600 MHz) | 3 dBi | |
| All Carriers – 5G (3500MHz) | 3 dBi |
Electrical Specifications
- Frequency Range: 698–960 / 1810–2700 / 3400–3800MHz
- Input Impedance: 50Ω
- VSWR: <2.5:1 over 90% of the Bands
- Polarisation: X-Pol 45/135°
- Radiation: Omnidirectional (Directional X-Pol)
- Maximum Power: 20Watts
Mechanical/Environmental Specifications
- Cable: 2x 5m LMR195
- Connector: 2x SMA Male or 2x N Female (your choice)
- Wind Rating: 250km/hr
- Temperature: -40°C +70°C
- Mounting: Window (suction), wall or pole
- Weight: 950g
- Dimensions: 247 x 157 x 88mm
