Key Features

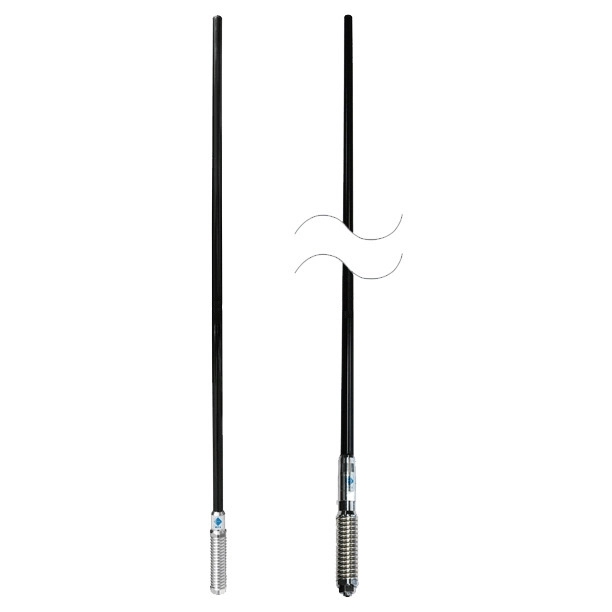

- This is the perfect Antenna setup for the Traveller, featuring a High Gain 8.5dBi Antenna for the remote areas and the Mid Gain 5.5dBi whip for the more hilly regions
- Ideal for all new 4G & 5G networks with true multi-band coverage
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security purposes
- Supplied with 5m low loss coaxial cable, with an SMA Male connector.
CDQ8199 Features
- As a rule of thumb: the higher the dBi, the flatter the angle the antenna can receive signal
- With a significantly higher gain than the CDQ8194 and CDQ8195, the CDQ8199 is the best performing antenna in flat outback and rural areas, where cell towers are few and far between
- The CDQ8100 series is designed with our Q-Fit® system for quick and simple removal of the whip section – this allows users to remove the whip section when entering car washes, low height areas such as car parks and for security
- The antenna is provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed
- With a 16mm stud mount on an heavy duty electro-polished stainless steel spring, these antennas may be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks
- The CDQ8199’s fully ground-independent design results in true 8.5dBi gain regardless of mounting position.
CDQ8194 Features
- In hilly areas, cell towers are usually located at the peak of the hill, and if you’ve got a very high gain antenna (like 9dBi) chances are the antenna won’t have a tall enough angle to receive from the tower
- The CDQ8194’s 5dBi gain is perfect for those in the southern states or anyone planning on travelling through hilly ranges
- “Q-Fit™ removable whip system for fast and simple removal when entering low height areas, car washes or for antenna security.” – read more on the RFI website
Connection
- This antenna has a 5m cable that terminates with an SMA Male connector
Please contact us If you’d like a shorter length of cable, or a different connector and we will customise this antenna for you.
A heads up!
- This product is over 2m in length and must be sent by specialist freight companies
- Understandably a 2m long cardboard tube can be easily damaged, so this product is shipped in a custom made PVC enclosure
- Due to the costs incurred, shipping of this item is expensive, irrespective of whether we’re shipping it to Sydney metro, or to Canada.
