Key Features
- Suits all Uniden, GME, Oricom, and other major brand radios
- Heavy duty electro-polished stainless steel spring
- Compact 1010mm height design – Quick removable Q-Fit™ whip system
- Available in both black and white
- Extremely robust fibreglass radome antenna with marine grade chrome plated brass and stainless steel fittings

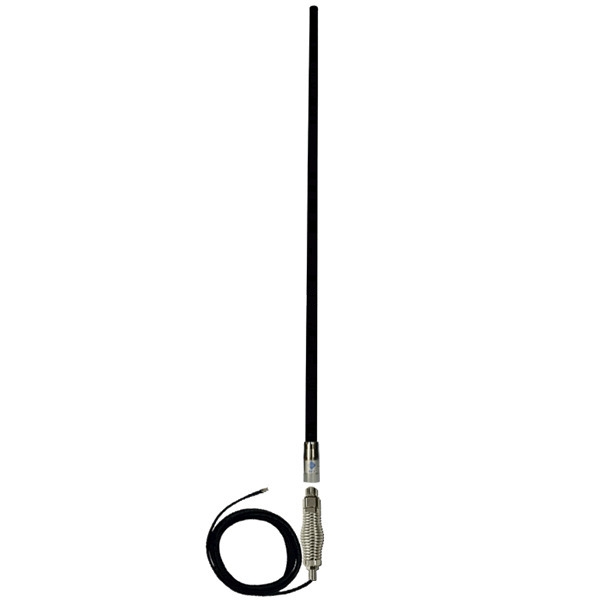

- The CDQ5000 is a high gain mobile UHF CB antenna providing genuine 5 dBi gain and is ideally suited for use in fringe areas and country applications where performance is critical
- Its rugged design and tough construction makes it a highly prized asset in even the harshest environments
- The quick removable Q-Fit™ whip system is designed for fast and simple removal when entering low height areas, car washes or for antenna security
- When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas.
Usage
- This rugged & extremely robust antenna is ideally suited to 4WD bullbar mounting
- With a 13mm stud mount and ground plane independant design, this antenna may be installed onto a number of mounting brackets such as mirror mounts, bull bar mounts, gutter mounts or fender mounts
- Ideal for installing in commercial vehicles, four wheel drives and trucks
- The CDQ5000 can even be used as a base station antenna due to its ground plane independent design. NB: The CDQ8000 has a heavier spring base and is recommended for all replacement whip or whip combinations
- The CDQ5000 has a lighter spring base and the placement of the CDQ8000 whip is not recommended on this spring base.
Connection
- This antenna has a 5m cable that terminates with an FME Female connector
- The FME Female connector is a smaller 6mm connector which makes routing through the vehicle firewall easier than standard UHF connectors
- A UHF connector for attaching to your UHF radio is supplied.
FME Female Connector [pictured]
- Please contact us if you would like a shorter length of cable, or a different connector, and we will customise this antenna for you.
