Panorama 4×4 MIMO 4G & 5G Directional Panel Antenna

$704.00

SKU: WMM4G-6-60-5 Categories: ,

Key Features

  • Ultra wide-band coverage 700 to 3800MHz
  • Wall Mount, Pole Mount & Desk Mount
  • Your choice of cable length and connectors (SMA or N-type)
  • Four cables for 4×4 MIMO operation
  • Wide spectrum design, suits all current and planned cellular networks (including future 5G Networks).
  • Ideal for Branch Networks & Failover

Additional Information

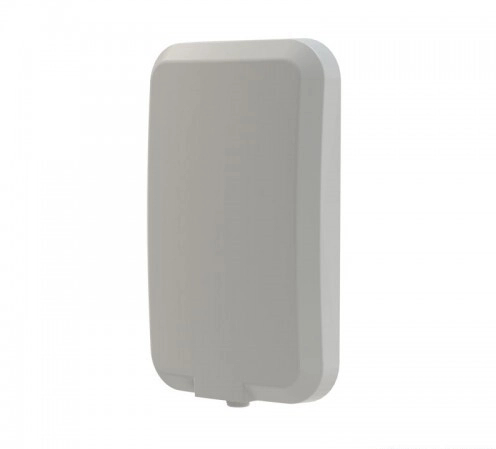

  • The WMM4G-6-60 is a high directional gain 4×4 MiMo signal boosting antenna for 4G and 5G networks.
  • Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.
  • The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided.
  • Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.

Download PDF Spec Sheet
